Place of Origin: | China |
Brand Name: | Limplus |
Certification: | CE |
Model Number: | LS-30D |
Minimum Order Quantity: | 1pcs |
---|---|
Packaging Details: | Packed in export carton Box |
Delivery Time: | immediate |
Payment Terms: | T/T, , MoneyGram, paypal |
Supply Ability: | 3000pcs/month |
Capacity: | 30liter | Tank Size: | 500x300x200mm (19.7”x11.8"x7.9”) |
---|---|---|---|
Ultrasonic Power: | 600W | Heating Power: | 500W |
Ultrasonci Frequency: | 40kHz | Accessaries: | Basket, Lid |
High Light: | laboratory ultrasonic cleaner,sonic ultrasonic cleaner |

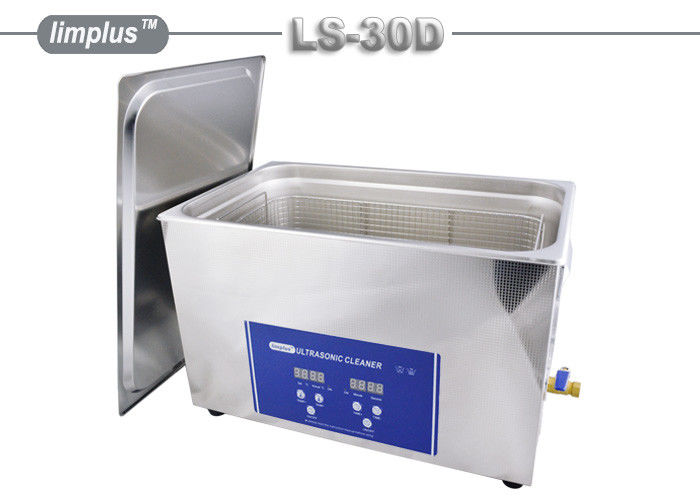

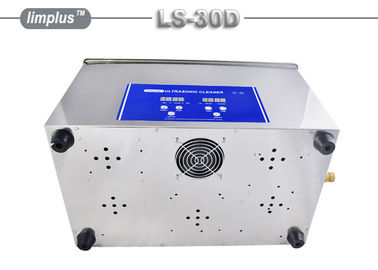

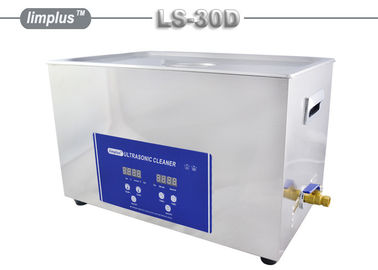

30Liter Ultrasonic Cleaning Device , Heated Ultrasonic Parts Cleaner For Electronics
What is “Ultrasonics?”
Ultrasonics is the science of sound waves above the limits of human audibility. The frequency of a sound wave determines its tone or pitch. Low frequencies produce low or bass tones. High frequencies produce high or treble tones. Ultrasound is a sound with a pitch so high that it can not be heard by the human ear. Frequencies above 18 Kilohertz are usually considered to be ultrasonic. The frequencies used for ultrasonic cleaning range from 20,000 cycles per second or kilohertz (KHz) to over 100,000 KHz. The most commonly used frequencies for industrial cleaning are those between 20 KHz and 50KHz. Frequencies above 50KHz are more commonly used in small tabletop ultrasonic cleaners such as those found in jewelry stores and dental offices.
Packing list:
1x LS-30D ultrasonic cleaner
1x SUS basket
1x SUS lid
1x power cord
1x English instruction manual
Application of ultrasonic cleaning:
Healthcare | Dental and surgical instruments, optical, podiatry, general practice, hospitals, medical components |
Manufacturing: | Aerospace, pharmaceutical, defence, medical devices, automotive, marine, filtration, moulding, plating & surface finishing, semi-conductors, printing technology and equipment, flux, tube |
Maintenance | Automotive servicing, jewellery & watches, tools, weapons, Heat exchangers, oil & gas, commercial coffee boiler |
Laboratory | Scientific Research, Mixing, Cell Disruption, extraction, pharmaceutical |
Others | window blind, golf club, tattoo equipment, anilox roller, music equipment, weapons, electronics, etc. |
Main Features:
1. With BLT type industrial ultrasonic transducer
2. SUS304 tank with long work life
3. With SUS basket and Lid
4. Certificate: CE
5. With industrial pcb board control.
6. With 12months warranty
Specifications:
Model | LS-30D |
Tank capacity | 30L |
Material | Stainless steel SUS304 |
Frequency | 40KHz |
Timer | 0-30min |
Power supply | AC 100-120V, 50/60Hz; AC 220-240V, 50/60Hz |
Ultrasonic power | 600W |
Heating power | 500W |
Tank Size | 500x300x200mm ( L x W x H ) (19.7"x11.8"x7.9") |
Overall Size | 530x330x350mm( L x W x H ) (20.9"x13"x13.8") |
Carton size |
634x400x440 mm ( L x W x H ) (25"x15.7"x17.3") |
N.W | 14 kg |
G.W | 16 kg |
Warranty time | 12 months |
Shipping method | DHL , FedEx , UPS , TNT , EMS , ARAMEX , By Air,By sea |
Any capacity is available from us. Tank size can be design based on your requirement.
About warranty:
All products of brand of Limplus enjoy one year warranty.
FAQ:
Q: What cleaning solution should I use?
A: Advanced cleaning solutions are made up of a variety of detergents, wetting agents and other reactive components. A large variety of different formulas designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the workpiece.
Q: Can ultrasonic cleaning damage parts?
A: Ultrasonic can't damage parts.
Ultrasonic cleaning is considered safe for most parts, although in some cases it is necessary to observe caution. Although the effects of thousands of implosions per second is very powerful, the cleaning
Contact Person: Limplus-Kelly
Tel: +8615002083247
