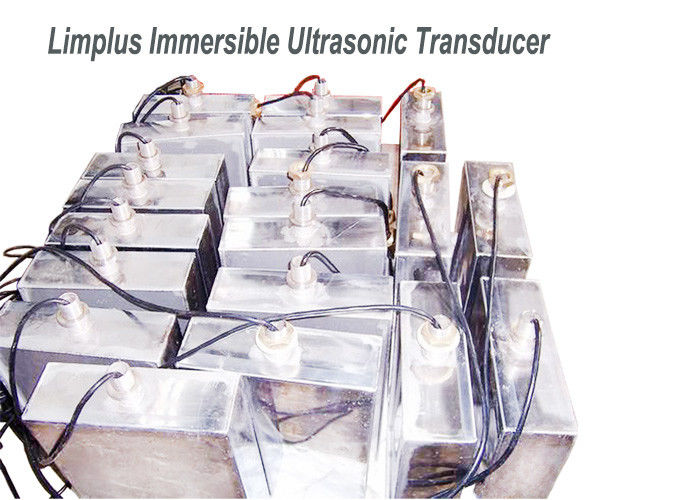

Home ProductsImmersible Ultrasonic Transducer

2000W Customized Submersible Ultrasonic Cleaner For Industrial cleaning , Adjustable Power

2000W Customized Submersible Ultrasonic Cleaner For Industrial cleaning , Adjustable Power

    • 2000W Customized Submersible Ultrasonic Cleaner For Industrial cleaning , Adjustable Power
  • 2000W Customized Submersible Ultrasonic Cleaner For Industrial cleaning , Adjustable Power

    Product Details:

    Place of Origin: China
    Brand Name: Limplus
    Model Number: LS-40T

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Packaging Details: export wooden case
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 500sets / month
    Contact Now
    Detailed Product Description
    Ultrasonic Frequency: 28kHz Or 40kHz Application: Car Parts Degrease
    Size: 600x500x100mm Working Time: 0~99minutes Adjust
    High Light:

    ultrasonic cleaning transducer

    ,

    submersible ultrasonic transducer

    2000W Customized Submersible Ultrasonic Cleaner For Industrial cleaning Adjustable Power



    Specification details:
    Ultrasonic transducer box size (mm):600x500x100mm(LXWXH)
    Housing material: SUS304/SUS316L
    Surface finishing: Hard-Cr plating treatment (20+microns)
    Ultrasonic frequency: 28KHz / 40KHz
    Ultrasonic transducers: 40pcs
    Ultrasonic power: 2000W
    Electronic generator: LSG-2000, Ultrasonic generator work separately control transducers
    power supply: AC 110V/220V or 220/240V, 1phase



    Advantages of Ultrasonic Transducer generator system:

    1. Same function with industrial ultrasonic cleaner, but price and shipping cost are cheaper.

    2. Piezo electric ceramic type transducer.

    3. Box size can be customized based on different cleaning requirement.

    4. Easy for maintainence if not use for long time.

    5. Multi frequency is also available. such as 28kHz & 40kHz

    6. Install on customer existing tank.

    7. With Cr-plating.

    8. With flexible tube, easy to operation for different tank.



    Specification of Transducer box:

    Model Unit Size (mm) Ultrasonic Power(W) Frequency(kHz) Transducers(pcs) Material Voltage
    LS-06T 280*180*100 0~300 20/25/28/40/68/80 6 SUS304 / SUS316L AC 100 ~ 120V, 50 / 60Hz;
    AC 220 ~ 240V, 50 / 60 Hz
    LS-12T 360*250*100 0~600 12
    LS-18T 410*300*100 0~900 18
    LS-24T 500*350*100 0~1200 24
    LS-30T 550*420*100 0~1500 30
    LS-36T 620*500*100 0~1800 36
    LS-48T 750*600*100 0~2400 48
    Remark:
    1. Number in the model means the quantity of transducer
    2. Each transducer box is control by separate generator
    3. Transducer box size & Frequency can be design based on requirement.
    4. Hard-Cr plating for transducer install side
    5. Rigid or Flexible tube is available
    6. 1 year warranty



    ODM & OEM are accepted.
    MOQ: 1 piece
    Certification: CE & RoHS
    Customer logo is welcome
    Distributors are welcome





    Controler Generator:

    2000W Customized Submersible Ultrasonic Cleaner For Industrial cleaning , Adjustable Power 0



    What frequency is better for my parts?
    Frequency is suggested based on pollutants in the objects.

    28kHz frequency is stronger, better for car/motor/truck/vessel parts clean (remove oils, grease, pastes, etc. )

    40kHz is better for pcb boards, electronic parts, etc.

    Higher precision goods, higher frequency.
