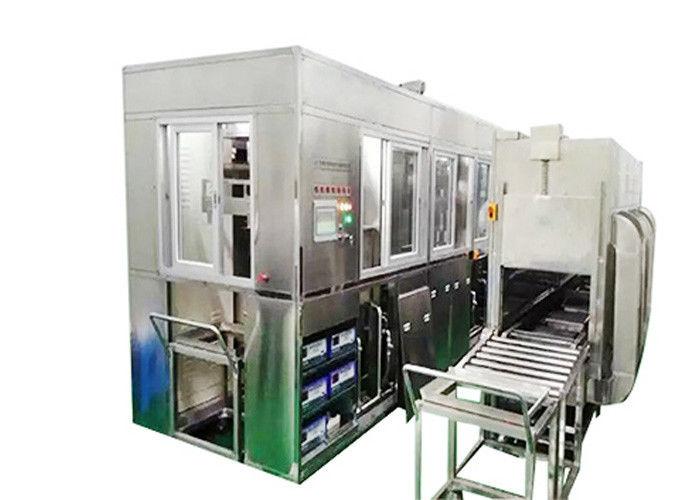

Three Tanks Brass Ultrasonic Cleaner With Oil Skimmer Spray Piping System 3600W

Three Tanks Brass Ultrasonic Cleaner With Oil Skimmer Spray Piping System 3600W

    • Three Tanks Brass Ultrasonic Cleaner With Oil Skimmer Spray Piping System 3600W
  • Three Tanks Brass Ultrasonic Cleaner With Oil Skimmer Spray Piping System 3600W

    Product Details:

    Place of Origin: China
    Brand Name: Limplus
    Model Number: LS-6003

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Packaging Details: export wooden case
    Delivery Time: 15 working days
    Payment Terms: T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 200sets/month
    Contact Now
    Detailed Product Description
    Tank Size: 550x1200x500mm Ultrasonic Power: 3600W
    Ultrasonic Frequency: 40kHz Material: SUS304
    Heating Power: 12KW / 1st Tank Timer: 0~99minutes Adjust
    High Light:

    ultrasonic cleaning equipments

    ,

    ultrasonic cleaner machine

    Three Tanks Ultrasonic Cleaning Machine with Oil Skimmer Spray Piping System 3600W



    Specification of LS-6003:

    Model: LS-6003 1st Tank 2nd Tank 3rd Tank
    Tank size 55*120*50cm 55*120*50cm 55*120*50cm
    Ultrasonic power 3600W(60pcs / 60W) / /
    Ultrasonic frequency 40kHz / /
    Controller 2units generators ON/OFF switch and indicator light
    Ultrasonic Timer 0~99minutes or 24hour keep working / /
    Heating power 12KW / /
    Temperature room temp ~80C / /
    Tank material SUS304 T=2.0mm
    Outer Case material SUS304 T=0.8mm
    Others 1. Digital temperature display
    2. Signal cable length of 5meters
    3. Ultrasonic generator with sweep function
    4. With SUS adjustable foot cups & casters
    5. Transducers install at the bottom of tank
    6. Hard-Cr plating for SUS plate which install transducers
    7. Wooden case package
    8. Voltage: AC380V, 3phase
    Function
    (Method 1)
    filtration system
    (with oil catch can, filter, pump)
    sprinkler piping
    (with filter, pump)
    sprinkler piping
    (with filter, pump)



    Remark:

    Clean cylinder heads, engine blocks, pistons, Manifolds, DPF-FAP filters, turbochargers, valve, marine filter and molds.
    Bigger or smaller capacity, rinsing tank, drying tank are available from Limplus.



    Some of the highlighting features of mould and die cleaning system are:

    1. Save huge labor cost at your workshop;
    2. Microcscopic cleaning quality, parts as new again;
    3. Get highest cleaning power with 28kHz ultra tech;
    4. Process begins with parts insertion at basket.
    5. Insulate cover to avoid heat and noise exit;
    6. Cleaning take 15 to 45 munites, water temperature inside tank up to 85℃;
    7. With oil skimming unit and filteration unit, reduce detergent use by six times;
    8. Dirt and grease are broken by ultrasonic cavitation.

    Ultrasonic cleaner applied ranges:

    Machinery industry: Removing rust and grease for Machinery Parts, Engine, carburetor and automobile parts cleaning, Filter. Clear filter, especially in the railway industry, for degreasing decontamination conditioned train cars, each member of the front of the train rust, oil, and rust, very suitable
    Surface treatment industry: Degreasing derusting before plating, cleaning before Ion plating, Metal workpiece surface activation treatment, phosphating, remove carbon deposition, oxidation and polishing paste
    Instrument industry: precision parts cleaning
    Electronic industry: remove Rosin and welding spot for p.c.b. boards, machinery parts cleaning
    Medical industry: medical apparatus and instruments cleaning and disinfecting
    Semiconductor industry: Semiconductor chips etc.
    Jewellery & Watch industry: Remove oil sludge, dust, oxidation layer, polishing paste. Etc.
    Chemical biology industry: labwares’ cleaning and descaling
    Optics industry: Optical vessels oil, sweat and dust removal
    Textile printing and dyeing industry: textile spindle, spinneret plate cleaning.
    Petroleum chemical industry: Metal screen cleaning, chemical containers and switchs' cleaning
