Limplus Oil Fiteration Industrial Ultrasonic Cleaner With Water Recycle System

Limplus Oil Fiteration Industrial Ultrasonic Cleaner With Water Recycle System

    • Limplus Oil Fiteration Industrial Ultrasonic Cleaner With Water Recycle System
  • Limplus Oil Fiteration Industrial Ultrasonic Cleaner With Water Recycle System

    Product Details:

    Place of Origin: China
    Brand Name: Limplus
    Certification: CE
    Model Number: LS-4801F

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Packaging Details: export wooden case
    Delivery Time: 15 working days
    Payment Terms: T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 200sets/month
    Contact Now
    Detailed Product Description
    Internal Tank Size: 70x50x50cm Capacity: 175L
    Frequency: 40kHz Or 28kHz Material: SUS304 Or SUS316L
    Heating Power: 6000W Ultrasonic Power: 2400W
    High Light:

    professional ultrasonic cleaner

    ,

    large capacity ultrasonic cleaner

    Limplus Oil Fiteration Industrial Ultrasonic Cleaner With Water Recycle System

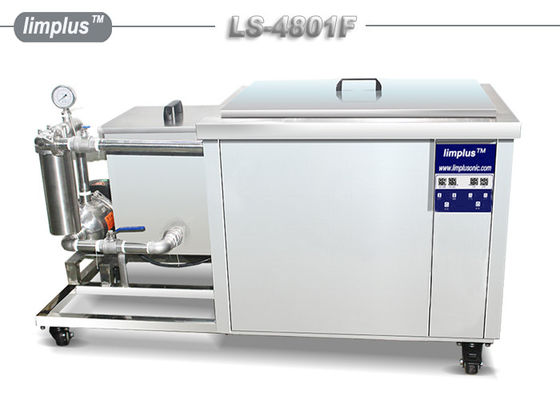

    Limplus LS-4801F industrial ultrasonic cleaner;

    Capacity: 175Liter

    Internal tank size: 700x500x500m

    With oil skimming can and filteration unit for detergent recycle use

    Clean cylinder heads, engine blocks, pistons, Manifolds, DPF-FAP filters, turbochargers, valve, marine filter and molds.



    Ultrasonic cleaner applied ranges:

    Machinery industry: Removing rust and grease for Machinery Parts, Engine, carburetor and automobile parts cleaning, Filter. Clear filter, especially in the railway industry, for degreasing decontamination conditioned train cars, each member of the front of the train rust, oil, and rust, very suitable
    Surface treatment industry: Degreasing derusting before plating, cleaning before Ion plating, Metal workpiece surface activation treatment, phosphating, remove carbon deposition, oxidation and polishing paste
    Instrument industry: precision parts cleaning
    Electronic industry: remove Rosin and welding spot for p.c.b. boards, machinery parts cleaning
    Medical industry: medical apparatus and instruments cleaning and disinfecting
    Semiconductor industry: Semiconductor chips etc.
    Jewellery & Watch industry: Remove oil sludge, dust, oxidation layer, polishing paste. Etc.
    Chemical biology industry: labwares’ cleaning and descaling
    Optics industry: Optical vessels oil, sweat and dust removal
    Textile printing and dyeing industry: textile spindle, spinneret plate cleaning.
    Petroleum chemical industry: Metal screen cleaning, chemical containers and switchs' cleaning





    Specifications:


    Remark: bigger or smaller capacity, rinsing tank, drying tank are available from Limplus.



    Model LS-2401F LS-3601F LS-4801F LS-7201F
    Tank Dimension(mm) 550X400X350 600X500X450 700X500X500 1000X600X600
    Max. Capacity 77L 135L 175L 360L
    Construction Case SUS304 (Mirror shining image available)
    Construnction Tank SUS304
    Transducer Number 24pcs 36pcs 48pcs 72pcs
    Ultrasonic power(Max.) 1200W 1800W 2400W 3600W
    Ultrasonic frequency 28kHz 28kHz 28kHz 28kHz
    Temperature range 20~80C adjustable
    Heating power 3KW 6KW 6KW 12KW
    Timer 1~99H 1~99H 1~99H 1~99H
    Drain 3/4" Valve
    Lid & Basket Available, material: SUS304
    Cleaning Tank voltage AC220V/AC380V 3phase
    Generator Voltage AC110V / 220V 1phase
    Features With Oil skimming unit and filteration unit;
    Multi-direction castors with brake;
    1 year warranty





    Some of the highlighting features of mould and die cleaning system are:

    1. Save huge labor cost at your workshop;
    2. 28kHz transducers & synchronized generators;
    3. Microcscopic cleaning quality, parts as new again;
    4. Get highest cleaning power with 28kHz ultra tech;
    5. Process begins with parts insertion at basket.
    6. Insulate cover to avoid heat and noise exit;
    7. Cleaning take 15 to 45 munites, water temperature inside tank up to 85℃;
    8. With oil skimming unit and filteration unit, reduce detergent use by six times;
    9. Dirt and grease are broken by ultrasonic cavitation.



    Abount Limplus Ultrasonic Cleaner Factory:



    Limplus Ultrasonic Cleaner Limited, founded in 2007, was located in Building 109, Chilingtou New Village, Longhua Dist. Shenzhen 518109 China. It is a professional equipment manufacturer in line with manufacturing and trading ultrasonic cleaning machine. It manufactures several types of ultrasonic cleaners: e.g.: digital ultrasonic cleaners, mechanical ultrasonic cleaners, mini household ultrasonic cleaners and so on. The product can be widely used in our lives and industries. LIMPLUS recommend you to clean: Jewelry, diamond, wedding ring, necklace, earring, clock and watches, camera, CD, eyeglasses, contact lens, dentures, table-ware, PCB board, car parts, hardware parts, electronic parts, etc. We also do OEM business for importers and wholesalers. And we sincerely welcome overseas distributers and retailers to establish business relationships. We promise to offer you high quality goods and competitive price and we guarantee you won’t regret to choose us.





    How does an ultrasonic cleaner?


    This is a method of cleaning both sweet and powerful.
    Ultrasound form of pressure variations that propagate through the material immersed in a liquid. These high-frequency vibrations produce millions of tiny microscopic bubbles whose characteristic is to implode immediately, releasing high energy causing the detachment of impurities even in inaccessible corners. Meanwhile, the collapse of these bubbles generates movements in the bath, conducive to cleaning.
    Water can get inside all crevices, every corner, every even the smallest cavities, the ultrasonic cleaner can clean complex parts and remove small particles that can not be cleaned by hand
    This gentle cleaning method completely eliminates all impurities, dirt, oxidation, oil, grease, carbonized deposits and contaminants from all surfaces of objects that are in contact with the cleaning liquid.



    Rinsing tank, drying tank can be customzied as requirement.
