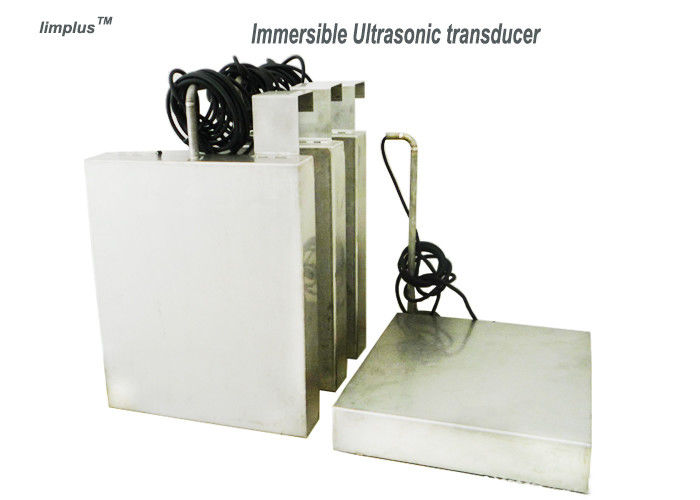

1200W LS -24T Wall - Mounted Immersible Ultrasonic Transducer With Flexible Hose

1200W LS -24T Wall - Mounted Immersible Ultrasonic Transducer With Flexible Hose

    • 1200W LS -24T Wall - Mounted Immersible Ultrasonic Transducer With Flexible Hose
  • 1200W LS -24T Wall - Mounted Immersible Ultrasonic Transducer With Flexible Hose

    Product Details:

    Place of Origin: China
    Brand Name: Limplus
    Certification: CE
    Model Number: LS-24T

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Packaging Details: export wooden case
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 500sets / month
    Contact Now
    Detailed Product Description
    Ultrasonic Power: 1200w Ultrasonic Frequency: 20/28/40/68/120kHz
    Cable Leadout: Flexible Or Rigid Warranty Time: 1 Year
    High Light:

    ultrasonic cleaning transducer

    ,

    waterproof ultrasonic transducer



    1200W LS -24T Wall - Mounted Immersible Ultrasonic Transducer With Flexible Hose





    The transducer box can just put on the bottome of the water tank, or hang on the wall or fixed on the wall by screw. Please choose cable leadout method convenient for your water tank.



    Please choose the convenient cable leadout method according to your tank.





    Features:



    1. Box size can be customized.

    2. Varies cable leadout method

    3. Hard Cr plating treatment for transducer box.

    4. Multi frequency is also available.

    5. BLT type transducer.





    Details of LS-24T:



    Transducer box size: 500*350*100mm

    Ultrasonic power: 0~1200W

    Ultrasonic frequency: 28khz/ 40khz

    Material: SUS304 / SUS316L

    Surface handle: Hard-Cr plating

    Transducer numbers: 24pcs

    Cable leadout method: Rigid or flexible



    Transducer box system specification:



    Model

    Unit Size

    (mm)

    Ultrasonic Power(W)

    Frequency

    (kHz)

    Transducers

    (pcs)

    Material Voltage
    LS-06T 280*180*100 0~300 28/40 6 SUS304/SUS316L AC 110V/230V, 1phase
    LS-12T 360*250*100 0~600 28/40 12 SUS304/SUS316L AC 110V/230V, 1phase
    LS-18T 410*300*100 0~900 28/40 18 SUS304/SUS316L AC 110V/230V, 1phase
    LS-24T 500*350*100 0~1200 28/40 24 SUS304/SUS316L AC 110V/230V, 1phase
    LS-30T 550*420*100 0~1500 28/40 30 SUS304/SUS316L AC 110V/230V, 1phase
    LS-36T 620*500*100 0~1800 28/40 36 SUS304/SUS316L

    AC 110V/230V, 1phase

    LS-48T 750*600*100 0~2400 28/40 48 SUS304/SUS316L

    AC 110V/230V,

    1phase





    FAQ:

    Q.: What are the advantages of ultrasonic technology over traditional cleaning methods?

    A.: Minimize the use of manual labor

    Make cleaning and degreasing without the use of organic solvents

    Clean hard to reach areas of products and remove all types of dirt

    Shorten the processes such as extraction, dispersion, purification, chemical reactions

    Eliminates costly mechanical and chemical cleaning of heat exchangers



    Q.: Which ultrasonic frequency is better for my parts?

    A.: Frequency is suggested based on pollutants in the objects.

    28kHz frequency is stronger, better for car/motor/truck/vessel parts clean(remove oils, grease, pastes, etc. )

    40kHz is better for pcb boards, electronic parts, etc.

    Higher precision goods, higher frequency.



    Q: How do I get the best out of my ultrasonic cleaner?

    For best results, ensure the component being cleaned is fully submerged in a suitable cleaning fluid and not touching the tank to allow maximum cavitations.
