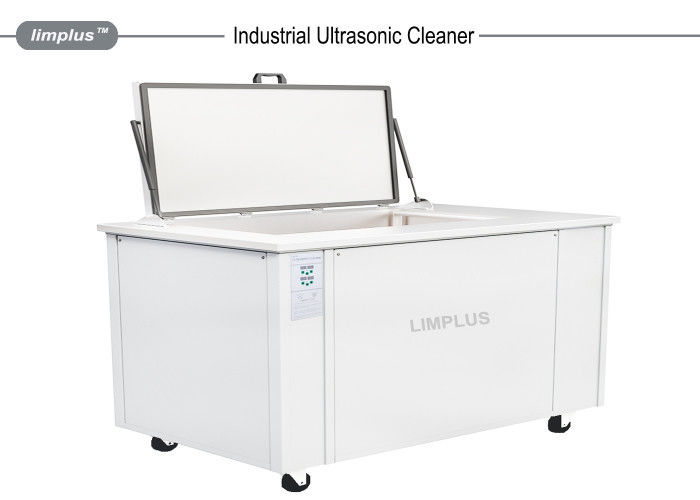

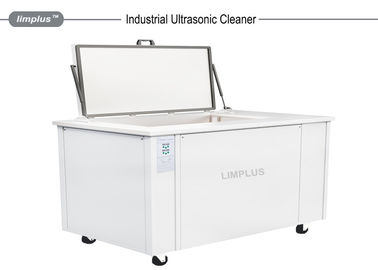

1800W Delicate Electronic Parts Ultrasonic Cleaning System With Special Basket

1800W Delicate Electronic Parts Ultrasonic Cleaning System With Special Basket

    • 1800W Delicate Electronic Parts Ultrasonic Cleaning System With Special Basket
  • 1800W Delicate Electronic Parts Ultrasonic Cleaning System With Special Basket

    Product Details:

    Place of Origin: China
    Brand Name: Limplus
    Certification: CE
    Model Number: LS-3601S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Packaging Details: export wooden case
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 300sets/month
    Contact Now
    Detailed Product Description
    Tank Size: 600x500x450mm Ultrasonic Power: 1800W
    Material: SUS304 / SUS316L Application: Delicate Electronic Parts Clean
    Unit Size: 780x680x750mm Optional: Rinsing Tank, Drying Tank, Filtration System
    High Light:

    Carburetor Ultrasonic Cleaner

    ,

    Ultrasonic Cleaner With Heater

    1800W Delicate Electronic Parts Ultrasonic Cleaning System With Special Basket
    Advanced science and technology have led to the innovation of many gadgets for easily doing the different tasks, which were earlier thought to be difficult and took many hours to accomplilsh.
    Ultrasonic cleaner that works on the principle of ultrasound and a good cleaning solution is required to clean delicate electronic parts.

    Ultrasonic cleaners use ultrasound along with a frequency range of around 20~400kHz, ultrasound have been used in many fields such as medicine, electronic gadgets, military and much more. Limplus ultrasonic cleaners are today used in electronic repair shops and other centers. the technology works on the rule of cavitation that occurs when small bubbles form and fall in violently on the cleaning solution. just put your electronic part or any other delicate item in the cavity of the cleaner that contains a suitable solution.

    Benefits:

    • Gently moves parts to assist with cleaning
    • Remove all components for next operation
    • Reduces/replaces hazardous cleaning solvents
    • Micro-clean parts reduces part failures
    • Lower labor costs - Increased profits


    Specifications:

    ModelLS-3601S
    Tank size600x500x450mm
    Unit Size780x680x750mm
    Ultrasonic power1800W
    Heating power4500W
    ultrasonic frequency40kHz, 28/68/120kHz
    Timer1~99hours
    Temperature20~80C adjust
    MaterialSUS304 / SUS316L
    VoltageAC220V/AC380V 3phase
    OptionalRinsing tank, Drying tank, filtration system


    Features:

    • Equipped with durable industrial ultrasonic transducers, excellent cleaning effects.
    • Seperate generator control.
    • Well packed by export wooden case.
    • Equipped with English instruction manual
    • With sweep function
    • With automatic constant temperature system.
    • With stainless steel basket, lid, drainage
    • 4 castors with brake.
    • Rinsing tank, Drying tank and filtration system is optional.
    • filtration system for prevent secondary pollution is optional.
    • Packed with professional export wooden case.

    Advantages:

    • Microprocessor circuit, digital display.
    • Piezoelectric ceramic ultrasonic transducer
    • Easy operation and professional style.
    • Timer-controlled ultrasonic
    • Movable basket
    • Castor with brake
    • Reduce liability
    • Built-in thermostatically controlled heat
    • Filtration System for heavy duty oil removing, cycle cleaning solvent, prevent second polution is optional

    LS S-series products:

    Model No.Capacity(L)Tank Size(L*W*H MM)Unit Size(L*W*H MM)Package Size(mm)Ultrasonic Power(W)Heating Power(W)Frequency(KHz)Transducer(PCS)Timer(Min)Temp.(℃)G.W.(KG)Voltage
    LS-1201S36400*300*300580*480*650790*560*820240~600150028/40120~9920~9550AC110V/AC220V, 1phase
    LS-1801S61500*350*350680*530*700890*610*870360~900300028/40180~99920~9560AC110V/AC220V, 1phase
    LS-2401S88550*400*400730*580*700940*660*870480~1200300028/40240~99920~9570AC110V/AC220V, 1phase
    LS-3001S96600*450*400780*630*700990*710*870600~1500450028/40300~99920~9573AC110V/AC220V, 1phase
    LS-3601S135600*500*450780*680*750990*760*9200~1800450028/40360~99920~95118AC220V/AC380V, 3phase
    LS-4801S175700*500*500880*680*8001090*760*9700~2400600028/40480~99920~95152AC220V/AC380V, 3phase
    LS-6001S264800*600*550980*780*8501190*860*9800~3000600028/40600~99920~95195AC220V/AC380V, 3phase
    LS-7201S3601000*600*6001180*780*9001390*860*11000~3600900028/40720~99920~95280AC220V/AC380V, 3phase


    Remark: Any capacity is available from us. Tank size can be customized based on your requirement.
