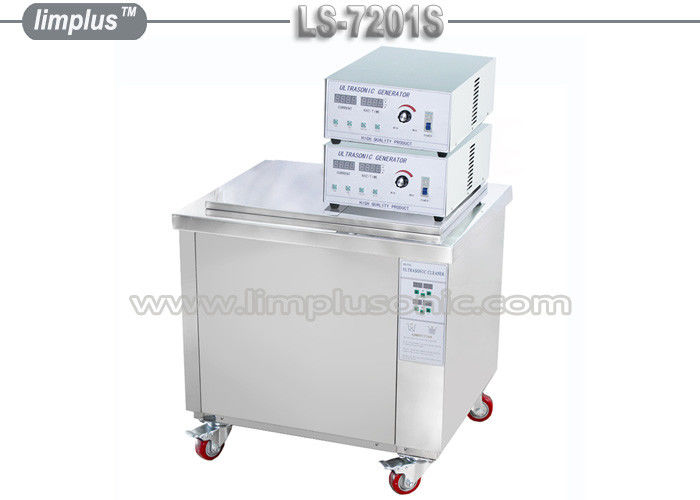

LIMPLUS Large Industrial Ultrasonic Cleaner Bath LS-7201S 360Liter ( 95Gallon )

LIMPLUS Large Industrial Ultrasonic Cleaner Bath LS-7201S 360Liter ( 95Gallon )

  • LIMPLUS Large Industrial Ultrasonic Cleaner Bath LS-7201S 360Liter ( 95Gallon )
LIMPLUS Large Industrial Ultrasonic Cleaner Bath LS-7201S 360Liter ( 95Gallon )
Product Details:
Place of Origin: China
Brand Name: Limplus
Certification: CE
Model Number: LS-7201S
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: export wooden case
Delivery Time: 7~10 working days
Payment Terms: T/T, , MoneyGram, Paypal
Supply Ability: 10units / month
Contact Now
Detailed Product Description
Frequency: 40kHz (28kHz Customized) Brand: LIMPLUS
Tank Size: 1000x600x600mm Ultrasonic Power: 3600W
Heating Power: 9KW Warranty: 12 Months
High Light:

large capacity ultrasonic cleaner

,

stainless steel ultrasonic cleaner

LIMPLUS Large Industrial Ultrasonic Cleaner Bath LS-7201S 360Liter ( 95Gallon )





Things to consider when buying an industrial ultrasonic cleaner



Size: In ultra sonic cleaning size does matter. Make sure that you are looking at the tank dimensions and not just the outside dimension.



Power: Make sure there is enough power. Compare the watt to gallon ratio. "We only sell equipment that has more than enough power!"



Frequency: Different frequencies clean differently. "Limplus sells 28khz/40kHz which are both strong and can be used for a variety of cleaning.



Durability: When looking at cleaners you will want only ones with a stainless steel tank . "All of Limplus ultrasonic cleaner tanks are 14gauge SUS304/316L"



Design: This is something you have to look at every day and possibly customers will be seeing your equipment too. "Limplus offers the most modern designs and controls"



Repairs: Being able to repair your machine to get back up and going is important. Not only does Limplus make sure that every component has an easy access panel, but we are always available to help.



Features: Things like liquid level shutdown are important not just for safety but also the life of your machine. Also wave sweep is important to cancel dead spots to get a more powerful cleaning and timer to shut off in case you forget about it being on. "This is standard on all of our machines"



Warranty: Always ask what the warranty is and if there is any small print. "We offer a 1 year, no questions asked, warranty"



Electrical: Being able to plug your machine in is important but making sure it isn't going to burn your building down is more important.

Some ultrasonic cleaners are not tested, inspected and certified. "We only sell equipment that is at least CE Certified"



Price: Of course this is important to everyone, but always check to see if there is an extra cost for accessories such as baskets.

" Not only does Limplus give you the lowest factory cost of equipment but we always give a basket with your machine."



Support: Buying new equipment is scary but being left alone after your purchase makes it worse. Here at Limplus, we are always available to answer questions.



Digital vs Analog: Make sure that the ultra sonic cleaners that you are buying is digital not analog. Just like with audio equipment digital is the newer technology and provides a more consistent cleaner sound wave. We only sell digital ultrasonic generators.



Names: Ultrasonic Cleaners are referred to by many names; "Sonic cleaners,Ultrasonic Cleaners, ultra sonic cleaners, sonic wave cleaners, ultrasonic cleaning system, ultrasonic cleaning machine"





All standard sizes for option:



Limplus Single tank Ultrasonic Cleaners spec.
Model LS-1201S LS-1801S LS-2401S LS-3001S LS-3601S LS-4801S LS-6001S LS-7201S
Tank Dimension(mm) 400x300x300 500x350x350 550x400x400 600X450X400 600X500X450 700X500X500 800X600X550 1000X600X600
Max. Capacity 36L 61L 88L 96L 135L 175L 264L 360L
Construction Case SUS304 (Mirror shining image available)
Construnction Tank SUS304
Transducer Number 12pcs 18pcs 24pcs 30pcs 36pcs 48pcs 60pcs 72pcs
Ultrasonic power(Max.) 600W 900W 1200W 1500W 1800W 2400W 3000W 3600W
Ultrasonic frequency 28/40kHz 28/40kHz 28/40kHz 28/40kHz 28/40kHz 28/40kHz 28/40kHz 28/40kHz
Temperature range 20~95℃ adjustable
Heating power 1.5KW 3KW 3KW 4.5KW 4.5KW 6KW 6KW 9KW
Timer 0~99min 0~999min 0~999min 0~999min 0~999min 0~999min 0~999min 0~999min
Drain 3/4" Valve
Lid & Basket Available, material: SUS304
Cleaning Tank voltage AC110V/AC220V, 1phase AC220V/AC380V, 3phase
Generator Build-in External
Generator Voltage AC110V / 220V 1phase
Features Multi-direction castors with brake;
1 year warranty







Limplus Ultrasonic Cleaner Advantages:

  • Whole machine made of SUS304 stainless steel, 2mm thickness tank for acid-proof, anti-corrosive.
  • Industrial grade ultrasonic transducer, moisture-proofed PCB.
  • Advanced generator, sweep frequency, high quality, better cleaning effect.
  • Ultrasonic power can be adjusted from 40-100%.
  • Temperature can be set from 20-95°C.
  • Industrial grade for 24 hours continuous working.
  • Ultrasonic frequency: 28kHz or 40kHz.
  • Fully portable, 36L and above volume machines are with wheels, locking wheels for stability.
  • With free lid and stainless steel SUS304 basket.
  • Customized according to customer’s request





Specifications of LS-7201S:



Tank working dimension (mm): 1000*600*600(L*W*H)

Overall dimension (mm): 1180*780*900(L*W*H)

Tank total capacity: 360L

Tank material: SUS304 / SUS316L

In-tank surface finishing: Hard-Cr Plating Treatment ( 20+ microns )

Housing material: Stainless steel

Ultrasonic frequency: 28kHz / 40kHz

Ultrasonic transducer: 72pcs

Ultrasonic output power (MAX.): 3600W

Electronic generator: LSG1800

Heater (hot plate) power: 9KW

Timer: 0~999minutes

Heater: 20~95C

Power supply: AC220V/AC380V, 3phase
