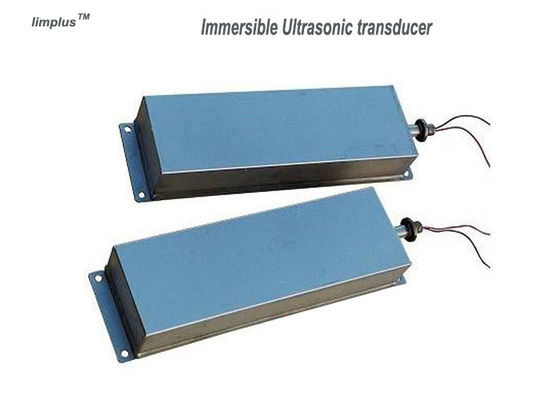

Sweep Function 20kHz Submersible Ultrasonic Transducer Waterproof For Medicine Extraction

Sweep Function 20kHz Submersible Ultrasonic Transducer Waterproof For Medicine Extraction

    • Sweep Function 20kHz Submersible Ultrasonic Transducer Waterproof For Medicine Extraction
    • Sweep Function 20kHz Submersible Ultrasonic Transducer Waterproof For Medicine Extraction
    • Sweep Function 20kHz Submersible Ultrasonic Transducer Waterproof For Medicine Extraction
    • Sweep Function 20kHz Submersible Ultrasonic Transducer Waterproof For Medicine Extraction
  • Sweep Function 20kHz Submersible Ultrasonic Transducer Waterproof For Medicine Extraction

    Product Details:

    Place of Origin: China
    Brand Name: Limplus
    Certification: CE
    Model Number: LS-18T

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Packaging Details: export wooden case
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 500sets / month
    Contact Now
    Detailed Product Description
    Model: LS-18T Material: SUS316L
    Ultrasonic Power: 900w Ultrasonic Frequency: 20kHz
    Trabsducer: 18pcs Warranty Time: 1 Year

    Limplus Submersible Ultrasonic Transducer Generator System Waterproof for Medicine Extraction



    How do ultrasonic immersible transducer box use in Extraction field?

    The ultrasonic technology for medicine extraction, homogenization is based on "cavitation effect".

    Ultrasonic technology extraction is beyond any previous technical feasibility, access to efficient extraction, more effective than heat extraction resident agency regulations, and shortens the extraction time, most of the material before the process is to be extracted within 10min.



    Advantages of Limplus extraction:

    1. High ultrasonic extraction efficiency.

    Extraction rate is 50%~500% higher than the traditional process

    2. Ultrasonic extractioin time is short.

    Only 24~40minutes to get the best extraction rate for ultrasonic extraction of medicin.

    short 2/3 or more than traditional craff methods, so ultrasonic can deal with large raw material.

    3. Ultrasonic extraction temperature is low

    Optimum temperature ultrasonic extraction is 40-60 degrees Celsius, no need to provide steam heating boilers, help save energy and improve the environment pollution. More important is the case of thermally unstable, susceptible to hydrolysis or oxidation of the active medicinal ingredient has a protective effect.

    4. Ultrasonic extraction and wide adaptability.

    Suitable for most types of herbal extracts and various ingredients.

    5. Ultrasonic liquid extraction with less impurity, the active ingredient easily separated and purified.

    6. Ultrasonic extraction is simple, easy maintenance and repair equipment.







    Specifications:

    Model LS-18T
    Transducer box size 410*300*100mm
    Ultrasonic power 0~900W
    Ultrasonic Frequency 20kHz
    Ultrasonic transducer number 18pcs
    Material SUS316L



    Remark: Box size can be adjust based on your requirement.





    Features:

    • With sweep function
    • With Piezoceramic transducer
    • Material SUS316L or other special material professional for extraction.
    • Transducer box can fix through tank wall or over the tank edge.
    • Limplus ultrasonic can be operated on critical environments
    • Accept custom size
    • Surface finishing: Hard-Cr plating treatment (20+microns)
    • power supply: AC 110V/220V or 220/240V



    Transducer box system specification:  (Transducer box size can be customized)

    Model Unit Size (mm) Ultrasonic Power(W) Frequency(kHz) Transducers(pcs) Material Voltage
    LS-06T 280*180*100 0~300 28/40 6 SUS304/SUS316L AC 110V/230V, 1phase
    LS-12T 360*250*100 0~600 28/40 12 SUS304/SUS316L AC 110V/230V, 1phase
    LS-18T 410*300*100 0~900 28/40 18 SUS304/SUS316L AC 110V/230V, 1phase
    LS-24T 500*350*100 0~1200 28/40 24 SUS304/SUS316L AC 110V/230V, 1phase
    LS-30T 550*420*100 0~1500 28/40 30 SUS304/SUS316L AC 110V/230V, 1phase
    LS-36T 620*500*100 0~1800 28/40 36 SUS304/SUS316L

    AC 110V/230V, 1phase

    LS-48T 750*600*100 0~2400 28/40 48 SUS304/SUS316L

    AC 110V/230V,

    1phase


    Ultrasonic technology extraction is beyond any previous technical feasibility, access to efficient extraction, more effective than heat extraction resident agency regulations, and shortens the extraction time, most of the material before the process is to be extracted within 10min.
