175 Liter 2400W Ultrasound Industrial Ultrasonic Cleaner LS -4801F With Recyle System

Good quality Industrial Ultrasonic Cleaner for sales
Good quality Industrial Ultrasonic Cleaner for sales
Hello Kelly. I have got the package today alright. Washed all our clubs and other stuff. The machine works great! Very happy, thank you very much!

—— Angia

I've used for a few months to clean mostly motorcycle parts & some dirty stuff with purple power degreaser,fast orange, and they all work really well.

—— Sergary

We've tried the ultrasonic cleaner to clean a number of items. It has really done a great job for us. Recommendable supplier. Thanks.

—— Daniele

I'm Online Chat Now

175 Liter 2400W Ultrasound Industrial Ultrasonic Cleaner LS -4801F With Recyle System

China 175 Liter 2400W Ultrasound Industrial Ultrasonic Cleaner LS -4801F With Recyle System supplier

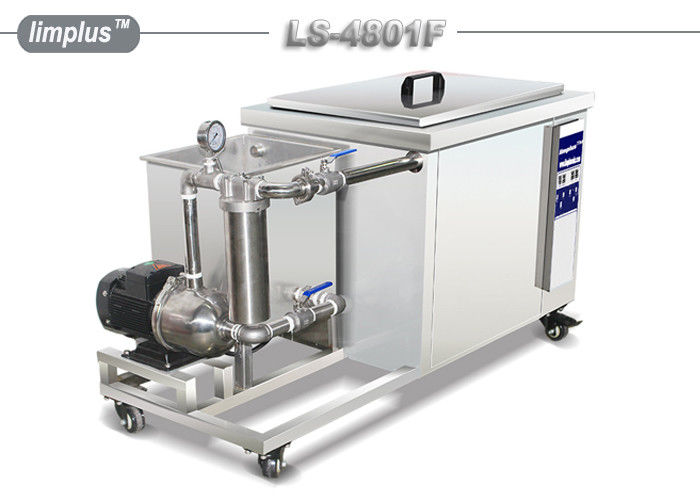

Large Image :  175 Liter 2400W Ultrasound Industrial Ultrasonic Cleaner LS -4801F With Recyle System

Product Details:

Place of Origin: China
Brand Name: Limplus
Certification: CE
Model Number: LS-4801F

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: export wooden case
Delivery Time: 15 working days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 200sets/month
Contact Now
Detailed Product Description
Internal Tank: 700x500x500mm Ultrasonic Power: 2400W
Ultrasonic Frequency: Stainless Steel 304 / Stainless Steel 316L Frequency: 28kHz / 40kHz
Heating Power: 6000W Leading Time: 7~12 Working Days


175 Liter 2400W Ultrasound Industrial Ultrasonic Cleaner LS -4801F With Recyle System



Limplus LS-4801F industrial ultrasonic cleaner;

Capacity: 175Liter

Internal tank size: 700x500x500m

With oil skimming can and filteration unit for detergent recycle use

Clean cylinder heads, engine blocks, pistons, Manifolds, DPF-FAP filters, turbochargers, valve, marine filter and molds.



Some of the highlighting features of mould and die cleaning system are:


  1. Save huge labor cost at your workshop;
  2. 28kHz transducers & synchronized generators;
  3. Microcscopic cleaning quality, parts as new again;
  4. Get highest cleaning power with 28kHz ultra tech;
  5. Process begins with parts insertion at basket.
  6. Insulate cover to avoid heat and noise exit;
  7. Cleaning take 15 to 45 munites, water temperature inside tank up to 85℃;
  8. With oil skimming unit and filteration unit, reduce detergent use by six times;
  9. Dirt and grease are broken by ultrasonic cavitation.


Ultrasonic cleaner applied ranges:

Machinery industry: Removing rust and grease for Machinery Parts, Engine, carburetor and automobile parts cleaning, Filter. Clear filter, especially in the railway industry, for degreasing decontamination conditioned train cars, each member of the front of the train rust, oil, and rust, very suitable
Surface treatment industry: Degreasing derusting before plating, cleaning before Ion plating, Metal workpiece surface activation treatment, phosphating, remove carbon deposition, oxidation and polishing paste
Instrument industry: precision parts cleaning
Electronic industry: remove Rosin and welding spot for p.c.b. boards, machinery parts cleaning
Medical industry: medical apparatus and instruments cleaning and disinfecting
Semiconductor industry: Semiconductor chips etc.
Jewellery & Watch industry: Remove oil sludge, dust, oxidation layer, polishing paste. Etc.
Chemical biology industry: labwares’ cleaning and descaling
Optics industry: Optical vessels oil, sweat and dust removal
Textile printing and dyeing industry: textile spindle, spinneret plate cleaning.
Petroleum chemical industry: Metal screen cleaning, chemical containers and switchs' cleaning





Remark: bigger or smaller capacity, rinsing tank, drying tank are available from Limplus.


Model LS-2401F LS-3601F LS-4801F LS-7201F
Tank Dimension(mm) 550X400X350 600X500X450 700X500X500 1000X600X600
Max. Capacity 77L 135L 175L 360L
Construction Case SUS304 (Mirror shining image available)
Construnction Tank SUS304
Transducer Number 24pcs 36pcs 48pcs 72pcs
Ultrasonic power(Max.) 1200W 1800W 2400W 3600W
Ultrasonic frequency 28kHz 28kHz 28kHz 28kHz
Temperature range 20~80C adjustable
Heating power 3KW 6KW 6KW 12KW
Timer 1~99H 1~99H 1~99H 1~99H
Drain 3/4" Valve
Lid & Basket Available, material: SUS304
Cleaning Tank voltage AC220V/AC380V 3phase
Generator Voltage AC110V / 220V 1phase
Features With Oil skimming unit and filteration unit;
Multi-direction castors with brake;
1 year warranty



Abount Limplus Ultrasonic Cleaner Factory:


Limplus Ultrasonic Cleaner Limited, founded in 2007, was located in Building 109, Chilingtou New Village, Longhua Dist. Shenzhen 518109 China. It is a professional equipment manufacturer in line with manufacturing and trading ultrasonic cleaning machine. It manufactures several types of ultrasonic cleaners: e.g.: digital ultrasonic cleaners, mechanical ultrasonic cleaners, mini household ultrasonic cleaners and so on. The product can be widely used in our lives and industries. LIMPLUS recommend you to clean: Jewelry, diamond, wedding ring, necklace, earring, clock and watches, camera, CD, eyeglasses, contact lens, dentures, table-ware, PCB board, car parts, hardware parts, electronic parts, etc. We also do OEM business for importers and wholesalers. And we sincerely welcome overseas distributers and retailers to establish business relationships. We promise to offer you high quality goods and competitive price and we guarantee you won’t regret to choose us.



How does an ultrasonic cleaner?

This is a method of cleaning both sweet and powerful.
Ultrasound form of pressure variations that propagate through the material immersed in a liquid. These high-frequency vibrations produce millions of tiny microscopic bubbles whose characteristic is to implode immediately, releasing high energy causing the detachment of impurities even in inaccessible corners. Meanwhile, the collapse of these bubbles generates movements in the bath, conducive to cleaning.
Water can get inside all crevices, every corner, every even the smallest cavities, the ultrasonic cleaner can clean complex parts and remove small particles that can not be cleaned by hand
This gentle cleaning method completely eliminates all impurities, dirt, oxidation, oil, grease, carbonized deposits and contaminants from all surfaces of objects that are in contact with the cleaning liquid.



175 Liter 2400W Ultrasound Industrial Ultrasonic Cleaner LS -4801F With Recyle System
