Submersible 40kHz Ultrasonic Transducers For Cleaning Tank , Ultrasonic Piezo Transducer

Submersible 40kHz Ultrasonic Transducers For Cleaning Tank , Ultrasonic Piezo Transducer

  • Submersible 40kHz Ultrasonic Transducers For Cleaning Tank , Ultrasonic Piezo Transducer
  • Submersible 40kHz Ultrasonic Transducers For Cleaning Tank , Ultrasonic Piezo Transducer
  • Submersible 40kHz Ultrasonic Transducers For Cleaning Tank , Ultrasonic Piezo Transducer
  • Submersible 40kHz Ultrasonic Transducers For Cleaning Tank , Ultrasonic Piezo Transducer
Submersible 40kHz Ultrasonic Transducers For Cleaning Tank , Ultrasonic Piezo Transducer
Product Details:
Place of Origin: China
Brand Name: Limplus
Model Number: LS-30T
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: export wooden case
Delivery Time: 7~10 working days
Payment Terms: T/T, , MoneyGram, Paypal
Supply Ability: 500sets / month
Contact Now
Detailed Product Description
Model: LS-30T Material: SUS304/SUS316L
Ultrasonic Power: 1500w Ultrasonic Frequency: 40kHz
Control: Separata Generator Control Warranty Time: 1 Year
High Light:

ultrasonic cleaning transducer

,

submersible ultrasonic transducer

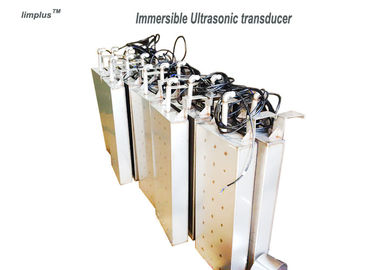

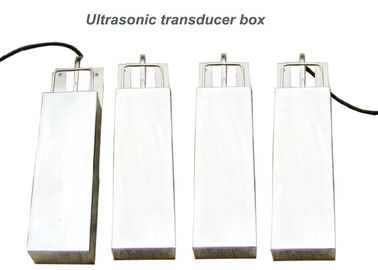

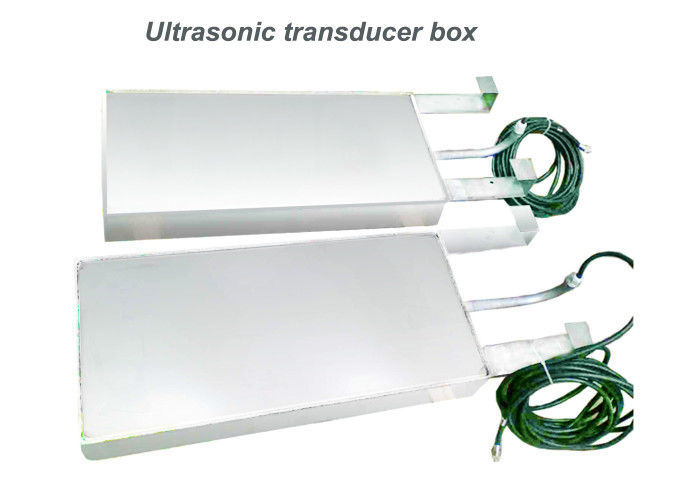

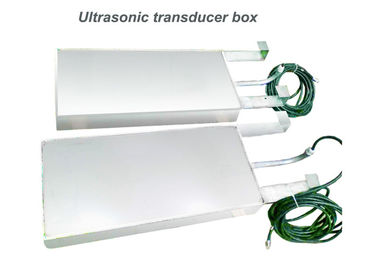

Limplus Ultrasonic Immersible Transducers 1500W Power 40kHz Frequency with Sweep Function

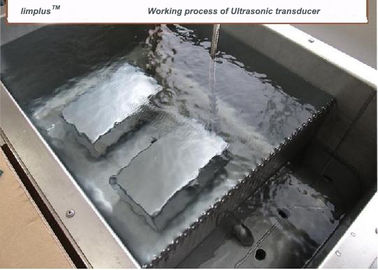

Ultrasonic Immersed transducers have the advantage of being easy to install, even in a tank which was not intended for that at the origin: they are simply placed or fixed in the tank and have the same cleaning effect as the transducers fixed directly on the tank.

Replacing of immersible transducers is easy. Limplus submersible transducers are designed for long life and optimum cleaning performance.



Specifications:

Model LS-30T
Transducer box size 550x420x100mm
Ultrasonic power 0~1500W
Ultrasonic Frequency 40kHz (better for golf club)
Ultrasonic transducer number 30pcs
Material SUS304 or SUS316L



Remark: Box size can be adjust based on your requirement.



Features:
1. With sweep function

2. With Piezoceramic transducer
3. Standard box material SUS304, SUS316L or other special material is avaialble.

4. Transducer box can fix through tank wall or over the tank edge.

5. Optional mounting racks for easy installation.

6. Accept custom size


Submersible 40kHz Ultrasonic Transducers For Cleaning Tank , Ultrasonic Piezo Transducer 0



Transducer box system specification:

Model Unit Size (mm) Ultrasonic Power(W) Frequency(kHz) Transducers(pcs) Material Voltage
LS-06T 280*180*100 0~300 28/40 6 SUS304/SUS316L AC 110V/230V, 1phase
LS-12T 360*250*100 0~600 28/40 12 SUS304/SUS316L AC 110V/230V, 1phase
LS-18T 410*300*100 0~900 28/40 18 SUS304/SUS316L AC 110V/230V, 1phase
LS-24T 500*350*100 0~1200 28/40 24 SUS304/SUS316L AC 110V/230V, 1phase
LS-30T 550*420*100 0~1500 28/40 30 SUS304/SUS316L AC 110V/230V, 1phase
LS-36T 620*500*100 0~1800 28/40 36 SUS304/SUS316L

AC 110V/230V, 1phase

LS-48T 750*600*100 0~2400 28/40 48 SUS304/SUS316L

AC 110V/230V,

1phase
